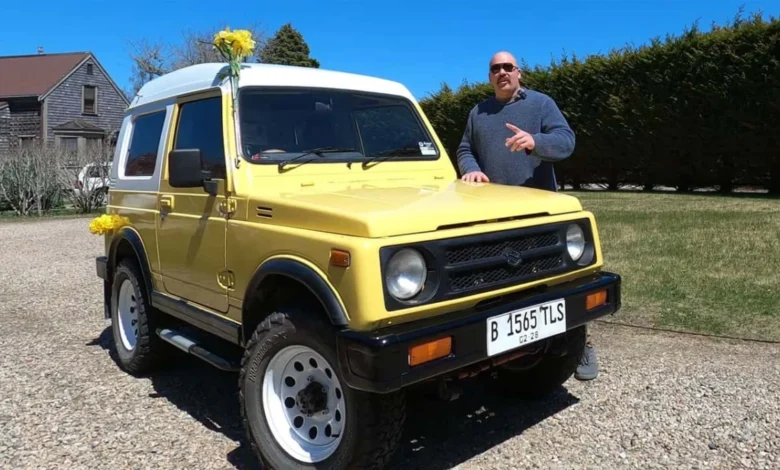

YouTuber Converts 1996 Suzuki Jimny To Electric For Under $5,000 In Just Five Days

The landscape of electric vehicle (EV) adoption is shifting from the exclusive domain of high-priced showroom models to the workshops of resourceful enthusiasts. While the global automotive industry focuses on multi-billion dollar manufacturing plants and high-performance lithium-ion platforms, a parallel movement of "garage-built" electrification is gaining momentum. This trend was recently exemplified by the creator of the YouTube channel Life of Troy, who successfully transformed a 1996 Suzuki Jimny into a fully functional electric vehicle for less than $5,000. Remarkably, the entire mechanical and electrical overhaul was completed within a five-day window, highlighting the increasing accessibility of off-the-shelf conversion components.

This project serves as a case study for the "circular economy" in the automotive sector, where aging internal combustion engine (ICE) vehicles, often destined for the scrap heap due to mechanical failure, are granted a second life through electrification. The Suzuki Jimny in question—a model closely related to the Suzuki Samurai sold in the United States—was imported from Indonesia. Following a series of persistent engine failures, the owner opted for a radical powertrain swap rather than a traditional repair, setting a benchmark for low-cost, utilitarian EV conversions.

The Catalyst for Conversion: Mechanical Failure and Opportunity

The 1996 Suzuki Jimny originally featured a modest 1.0-liter four-cylinder engine, producing approximately 45 horsepower. While adequate for the vehicle’s lightweight frame and off-road intentions, the engine proved unreliable in its later years. After importing the vehicle to the United States, the owner experienced a blown head gasket shortly after the Christmas holiday. This was the second such failure during his ownership, leading to a critical decision point: invest in another round of expensive and potentially temporary internal combustion repairs or pivot toward a more modern, albeit experimental, solution.

The decision to convert the Jimny to electric power was driven by a desire for simplicity and low-speed urban utility. Unlike professional conversion firms that charge six-figure sums to create "restomods" with Tesla-level performance, this project prioritized cost-efficiency and ease of assembly. The goal was not to create a long-distance highway cruiser, but rather a "Neighborhood Electric Vehicle" (NEV) capable of handling short commutes and errands with minimal maintenance.

Technical Specifications and Powertrain Architecture

The engineering philosophy behind the Jimny conversion was one of minimalism. To keep costs low and the timeline short, the owner utilized a direct current (DC) motor system rather than the more complex and expensive alternating current (AC) systems found in modern production EVs.

The Motor and Transmission

The heart of the conversion is a 72-volt DC motor manufactured by D&D Motor Systems. Retailing for approximately $929, the motor is rated at just nine horsepower. While this figure appears significantly lower than the original 45-horsepower ICE engine, the electric motor offers a distinct advantage in torque. Producing 65 pound-feet of torque available from zero RPM, the motor provides sufficient low-end grunt to move the Jimny effectively through city traffic.

In a move that simplified the mechanical transition, the electric motor was mated directly to the Jimny’s original five-speed manual transmission. This was achieved using a custom-machined adapter plate, a common solution in the DIY EV community. By retaining the original gearbox, the builder avoided the need to fabricate custom driveshafts or differential mounts. Furthermore, the transmission allows the driver to select different gear ratios to optimize the motor’s efficiency or torque depending on the driving environment.

Power Management and Electronics

To control the flow of electricity from the battery to the motor, a 500-amp programmable controller was installed, costing roughly $815. This unit manages throttle response and ensures the motor operates within its thermal and electrical limits. Additionally, a DC-to-DC converter sourced from eBay was integrated into the system. This component replaces the traditional alternator, stepping down the high-voltage battery power to 12 volts to power the vehicle’s auxiliary systems, such as lights, wipers, and the dashboard instrument cluster.

Battery Technology and Range

The most significant investment in any EV conversion is typically the energy storage system. For this build, the owner selected a 105-amp-hour lithium-iron-phosphate (LiFePO4) battery pack, a chemistry known for its safety, longevity, and stability compared to traditional lithium-ion (NMC) batteries. The battery, originally designed for use in high-end golf carts, retails for approximately $1,900.

The battery is mounted at the rear of the vehicle, occupying the space formerly reserved for the gasoline tank. This placement helps maintain a favorable center of gravity. Currently, the battery provides a realistic driving range of 20 to 30 miles on a single charge. While this range is modest by modern standards, it aligns with the owner’s specific use case for local travel. The system is designed to be modular, allowing for the addition of more battery capacity in the future should the need for a longer range arise.

The Five-Day Timeline: From ICE to EV

The speed of the conversion—just five days—was made possible by the Jimny’s simplistic design and the absence of complex modern features.

• Day 1-2: Demolition and Preparation: The initial phase involved the removal of the 1.0-liter engine, the cooling system (radiator and hoses), and the exhaust system. Because the 1996 Jimny lacked vacuum-assisted brakes, the builder did not need to install an electric vacuum pump to maintain braking performance, a step that often complicates conversions of newer vehicles.
• Day 3: Mechanical Integration: The focus shifted to mounting the D&D motor to the transmission. The adapter plate was fitted, and the motor was secured into the engine bay using the original motor mount locations, albeit with modified brackets.
• Day 4: Electrical Infrastructure: The battery pack was secured in the rear, and high-gauge wiring was run to the engine compartment. The 500-amp controller and DC-to-DC converter were mounted on a custom-fabricated tray in the space previously occupied by the ICE engine.
• Day 5: Final Wiring and Testing: The final day was dedicated to throttle linkage, wiring the ignition switch to the controller, and conducting low-speed test drives. The car was successfully running and driving under its own power by the end of the work week.

Performance and Daily Usability

The resulting vehicle is a unique hybrid of vintage Japanese engineering and modern electrical components. One of the most notable changes in driving dynamics is the elimination of the clutch. Because electric motors provide full torque at zero RPM and do not "stall" like internal combustion engines, the driver can leave the car in a single gear (usually second or third) for most urban driving. The clutch pedal remains in the footwell but is unnecessary for starting or stopping.

In terms of speed, the electric Jimny has reached 50 miles per hour. This is comparable to the original top speed of the 1.0-liter gasoline version, which struggled to maintain highway speeds. Charging is handled through a standard 120V household outlet. A full charge from empty takes approximately five hours, making it easy to "refuel" the vehicle overnight in a residential garage.

Financial Breakdown of the $5,000 Build

The project’s ability to stay under the $5,000 threshold is a significant achievement in an industry where battery prices alone often exceed that amount. The estimated cost breakdown is as follows:

This budget does not account for the owner’s labor, but it demonstrates that the hardware required for a functional, short-range EV is now within reach of the average hobbyist.

Broader Implications for the Automotive Industry

The "Life of Troy" Jimny project highlights a growing subculture of the EV movement that favors "appropriate technology" over "high technology." As major manufacturers phase out internal combustion engines, the world faces a looming challenge: what to do with the hundreds of millions of existing ICE vehicles.

Professional conversions, such as those performed by companies like Everrati (which electrifies Land Rovers and Porsches) or Lunaz (which focuses on Bentleys and Rolls-Royces), serve the luxury market. However, budget-friendly DIY projects suggest a path forward for the mass-market "upcycling" of older vehicles. By replacing a failed engine with a simple electric drivetrain, owners can avoid the high cost of a new EV while significantly reducing their carbon footprint and maintenance requirements.

Furthermore, the project has resonated with a wide audience. The comments and community feedback surrounding the build indicate a surge in interest for similar conversions of All-Terrain Vehicles (ATVs), classic tractors, and golf carts. These smaller-scale projects act as a gateway for consumers to familiarize themselves with electric propulsion systems without the intimidation factor of high-voltage, liquid-cooled Tesla swaps.

Conclusion: The Future of Budget Electrification

The 1996 Suzuki Jimny EV conversion is a testament to the feasibility of low-cost electrification. While it lacks the 300-mile range and autonomous driving features of a modern Tesla, it succeeds in its primary mission: providing reliable, low-cost, and environmentally friendly transportation for a specific use case.

As battery energy density continues to improve and the secondary market for EV components matures, the "five-day, $5,000 conversion" may move from a YouTube curiosity to a viable alternative for keeping classic and utilitarian vehicles on the road. For many enthusiasts, the appeal lies not just in the fuel savings, but in the satisfaction of taking a "broken" machine and reinventing it for the modern era. The Jimny project proves that with a modest budget and a clear plan, the transition to electric mobility can start in a home garage.
