The Five-Day Electric Transformation: How a 1996 Suzuki Jimny Was Converted to EV Power for Under Five Thousand Dollars

The landscape of automotive restoration and modification is undergoing a seismic shift as the barriers to electric vehicle (EV) technology continue to fall. While the automotive industry often focuses on high-end, six-figure conversions of classic Porsches and Mustangs, a parallel movement is emerging among hobbyists and DIY enthusiasts. This movement prioritizes utility, cost-efficiency, and simplicity over luxury and extreme performance. A prime example of this trend was recently documented by the YouTuber known as Life of Troy, who successfully converted a 1996 Suzuki Jimny—a vehicle famously known in the United States as the Suzuki Samurai—into a fully functional electric vehicle in just five days for a total investment of less than $5,000. This project highlights a significant turning point in the democratization of EV technology, proving that electrification is no longer the exclusive domain of specialist firms or wealthy collectors.

The Subject Vehicle: A Legacy of Simplicity

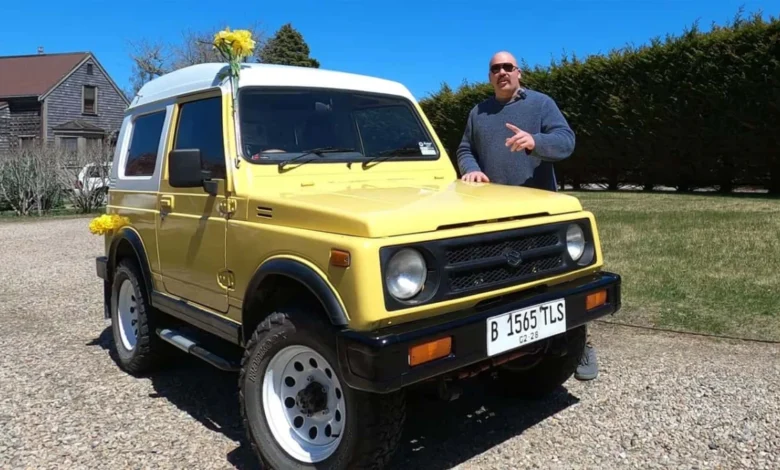

The 1996 Suzuki Jimny utilized for this project was an Indonesian import, a model celebrated globally for its lightweight construction, off-road capability, and mechanical transparency. In its original internal combustion engine (ICE) configuration, the Jimny was powered by a 1.0-liter four-cylinder engine producing approximately 45 horsepower. While adequate for its time and intended use as a compact utility vehicle, the aging powerplant eventually became a liability.

The impetus for the conversion was a recurring mechanical failure. According to the owner, the vehicle’s head gasket blew for the second time during his ownership shortly after the Christmas season. Faced with the prospect of another costly and labor-intensive repair on an antiquated engine, the owner opted for a radical alternative: removing the internal combustion components entirely and replacing them with a modular electric drivetrain. The Suzuki Jimny is an ideal candidate for such a conversion due to its ladder-frame chassis and ample engine bay space, which allows for relatively easy integration of electric motors and battery packs without compromising the structural integrity of the vehicle.

Technical Specifications and Component Integration

The conversion was designed with a philosophy of "functional minimalism." Rather than seeking to replicate the high-voltage systems found in modern Tesla or Rivian models, the project utilized a 72-volt direct current (DC) system. This lower voltage is generally safer for DIY builders to handle and significantly reduces the cost of components.

The heart of the new drivetrain is a 72-volt DC motor manufactured by D&D Motor Systems. While the motor is rated at a modest nine horsepower, electric motors provide a vastly different power delivery profile compared to ICE engines. The motor generates 65 pound-feet of torque, which is available instantly from zero RPM. This torque figure is crucial for a vehicle like the Jimny, which relies on low-end grunt for urban driving and light off-road tasks. The motor was purchased for approximately $929, making it a highly cost-effective alternative to high-performance AC induction motors.

To manage the flow of electricity, a 500-amp motor controller was installed, retailing for approximately $815. This unit acts as the "brain" of the vehicle, translating throttle inputs into voltage adjustments for the motor. A DC-to-DC converter, sourced from eBay, was also integrated into the system to step down the high-voltage battery power to 12 volts, allowing the vehicle’s original lights, dashboard, and electronics to function normally.

One of the most innovative aspects of the build is the retention of the original five-speed manual transmission. The electric motor was mated to the gearbox via a custom-machined adapter plate. Because electric motors do not stall and provide torque across a wide range, the driver does not need to use a clutch to start from a standstill. The gears essentially act as different "modes" for varying terrain or speed requirements, though the vehicle can comfortably operate in a single gear for most city driving.

Energy Storage: The Golf Cart Solution

The most expensive and complex component of any EV conversion is the battery system. To keep costs within the $5,000 budget, the builder utilized a 105-amp-hour lithium-iron-phosphate (LiFePO4) battery pack. Interestingly, this battery was originally designed for use in high-end electric golf carts.

LiFePO4 chemistry is increasingly favored in DIY circles because it is more stable and less prone to thermal runaway than the nickel-manganese-cobalt (NMC) batteries found in many production EVs. The battery pack was installed in the rear of the vehicle, occupying the space formerly reserved for the fuel tank. At a cost of roughly $1,900, the battery provides a realistic driving range of 20 to 30 miles per charge. While this range would be insufficient for long-distance touring, it perfectly aligns with the owner’s goal of using the Jimny as a low-speed "island car" or urban runabout. Charging is handled through a standard 120V household outlet, with a full recharge taking approximately five hours.

A Five-Day Chronology of Construction

The speed with which the conversion was completed—just five working days—is a testament to the modular nature of modern EV components. The timeline of the project followed a logical progression:

1. Day 1: Deconstruction: The original 1.0-liter engine, cooling system, and exhaust were removed. Because the Jimny lacked vacuum-assisted brakes, the builder did not need to install an auxiliary vacuum pump, a common complication in many EV swaps.
2. Day 2: Adaptation: The adapter plate was fitted to the original transmission, and the D&D motor was bolted into the engine bay. Mounting brackets were fabricated to ensure the motor was aligned with the drivetrain.
3. Day 3: Control Systems: The 500-amp controller and DC-to-DC converter were mounted under the hood. Wiring harnesses were created to connect the throttle pedal to the controller.
4. Day 4: Battery Integration: The rear fuel tank was removed, and the 105Ah LiFePO4 battery pack was secured in its place. Heavy-gauge cabling was run from the rear of the vehicle to the controller in the front.
5. Day 5: Testing and Calibration: The system was powered on, and the vehicle underwent initial low-speed testing to verify torque delivery and braking performance.

Performance and Real-World Utility

In initial testing, the electric Jimny reached a top speed of approximately 50 miles per hour. While this is lower than modern highway speeds, it is comparable to the original top speed of the 1.0-liter ICE Jimny, which was never intended for high-speed cruising. The removal of the engine also significantly reduced the vehicle’s noise, vibration, and harshness (NVH) levels, making for a much smoother driving experience in stop-and-go traffic.

The owner noted that the vehicle’s utility is currently limited only by the battery capacity. However, because the system is modular, additional battery packs could be added in parallel in the future to double or triple the range if the vehicle’s use case changes.

Economic and Environmental Implications

The Jimny project serves as a case study for the economic viability of "upcycling" older vehicles. The total cost breakdown—approximately $4,000 to $5,000 for parts—is less than the price of many used subcompact cars. When compared to the cost of purchasing a new electric vehicle, which averages over $50,000 in the current market, the DIY approach offers a path to zero-emission transportation for a fraction of the price.

Furthermore, this project addresses the environmental impact of vehicle manufacturing. By repurposing an existing chassis and body, the builder avoided the "carbon debt" associated with the production of a new vehicle’s steel, glass, and plastic. This "circular economy" approach to automotive ownership is gaining traction as more consumers look for ways to extend the life of their current vehicles while reducing their carbon footprint.

The Broader Impact on the DIY Community

The success of the "Life of Troy" project has resonated deeply within the online automotive community. Comments on the project videos indicate a surge of interest from owners of old ATVs, classic trucks, and even golf carts who are looking to perform similar conversions. The availability of "plug-and-play" components from retailers like D&D Motor Systems and various eBay suppliers has lowered the technical barrier to entry.

This project also highlights the importance of "Right to Repair" and the ability of individuals to modify their own property. As modern vehicles become increasingly complex and software-dependent, older mechanical platforms like the Suzuki Jimny represent a "blank canvas" for innovation.

Conclusion

The sub-$5,000 electric Suzuki Jimny is more than just a hobbyist’s weekend project; it is a proof of concept for a more sustainable and affordable automotive future. By combining off-the-shelf components with a classic, lightweight chassis, the builder has demonstrated that the transition to electric mobility does not always require high-voltage complexity or massive financial investment. As battery prices continue to decline and the availability of modular EV parts increases, the sight of "reborn" electric classics on city streets is likely to become increasingly common. For the Jimny, a blown head gasket was not the end of the road, but rather the beginning of a silent, efficient second life.
